OSC-16.200

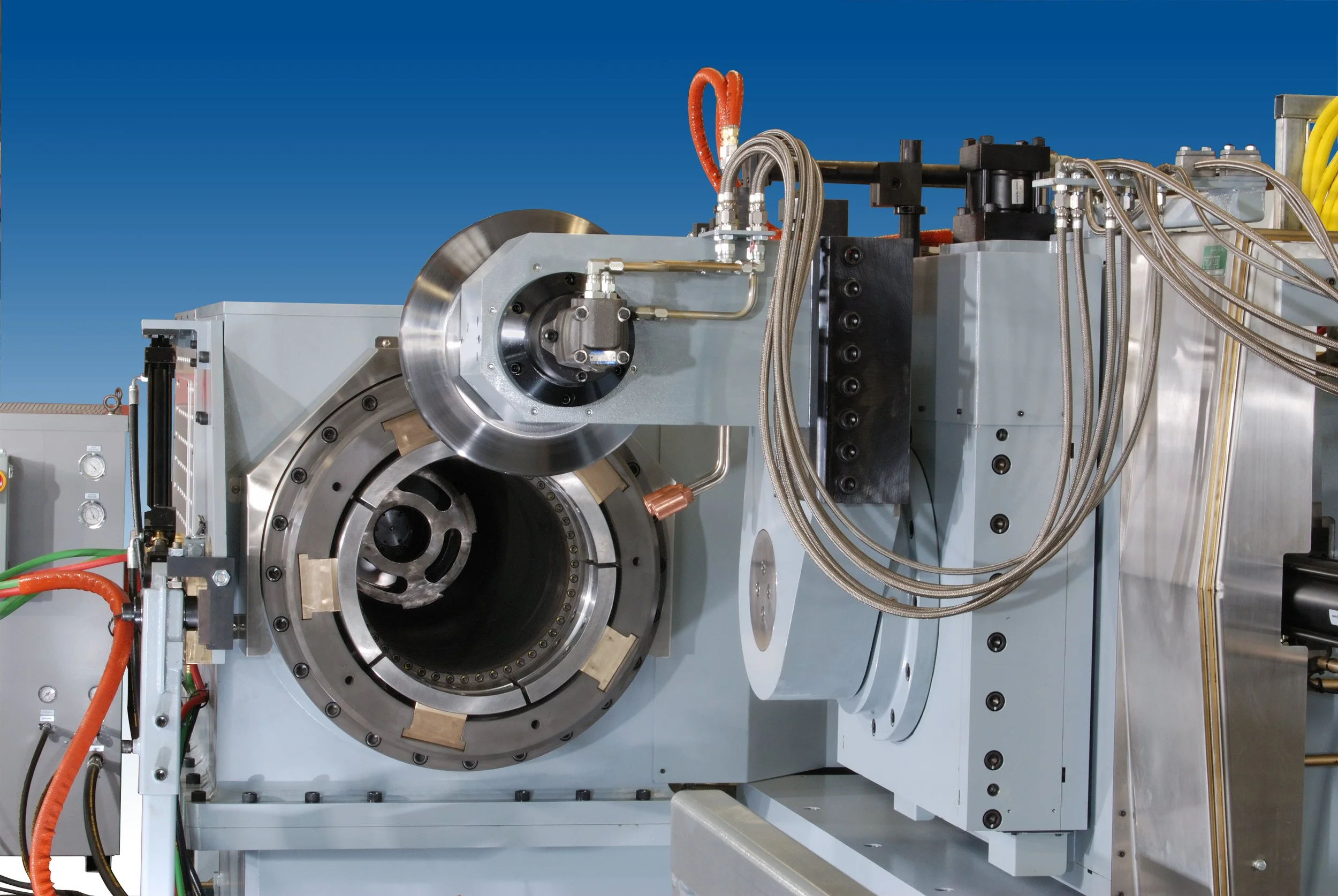

MJC Neck Forming Machines are specially designed for manufacturing of high pressure cylinders for a wide variety of industrial and commercial applications.
This includes neck forming and end closing. Using the latest technology available and standard components ensures the highest productivity while keeping maintenance
and cost of ownership the lowest in the world. MJC customers benefit from the best service and support in the industry through locally authorized service centers.
MJC Neck Forming Machines are specially designed for manufacturing of high pressure cylinders for a wide variety of industrial and commercial applications.
This includes neck forming and end closing. Using the latest technology available and standard components ensures the highest productivity while keeping maintenance
and cost of ownership the lowest in the world. MJC customers benefit from the best service and support in the industry through locally authorized service centers.
MJC Neck Forming Machines are specially designed for manufacturing of high pressure cylinders for a wide variety of industrial and commercial applications.
This includes neck forming and end closing. Using the latest technology available and standard components ensures the highest productivity while keeping maintenance
and cost of ownership the lowest in the world. MJC customers benefit from the best service and support in the industry through locally authorized service centers.
MAXIMUM CAPACITY
Diameter Range: 232-425 mm
Maximum Tube length 2500 mm
Maximum Wall Thickness 16 mm
MACHINE DATA
Spindle Drive AC Vector: 160 kW
Z-axis speed: 0-160mm/sec
Z-axis force: 165kN
Rotation Travel: 110deg
Rotation Speed 0-60 degrees/sec
Chucking System Hydraulic Draw Tube
Clamping force 500kN
CNC Control System: Siemens Sinumerik One
Programming Software: MJC Software Suite
